AT5000 AFDR

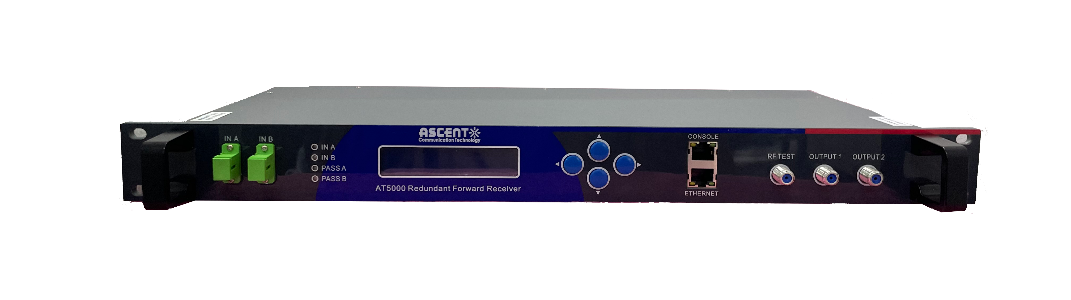

AT5000 1RU Redundant Dual Forward Receiver offers a flexible, high performance forward receiver platform for CATV forward path transmission in HFC network. Together with ACT 1RU AT5000 XMOD and EDFA optical amplifiers, the 1RU AFDR forward receiver provides an ideal long distance, optical redundant high-quality video transmission solution in traditional HFC network and also high density FTTX networks to bring back the data signal from business and subscriber home premises.

•    High Performance, Dual Froward Optical Receiver with Redundancy

•    Suitable for Cable TV headend to hub optical transmission application

•    Dual Receivers in 1RU Chassis

•    Bandwidth 47 to 1002MHz

•    Dual redundant hot-swappable AC or DC power supplies

•    Front-panel LCD for local monitoring of transmitter status

•    Local or remote monitoring and configuration

•    SNMP/HTTP monitoring, management and control


AT5000 Redundant Forward Dual Optical Receiver, AFDR

Items

Parameters

Optical Parameters

Wavelength

1100 nm to 1600 nm

Input Ports

2 (one main and one backup)

Input Power

‑7 dBm to +2 dBm

Optical Return Loss

>45 dB

Fiber Connector

FC/APC, SC/APC

Fiber Type

SM

RF Parameters

Frequency

47 MHz to 862/1000 MHz

RF Flatness

±0.75 dB

Standard Output Level

≥108 dBµV

Max. Output Level

≥112 dBµV (single)

Single Channel Isolation

≥60 dB

Isolation Between Channels

≥72 dB

Channel Switch Time

8 ns

Output Return Loss

≥16 dB

Impedance

75 Ω

Electronic Equalizer

0 dB to 15 dB

EVOA

0 dB to 30 dB

Link Performance

C/N

≥51 dB (‑1 dBm Input)

C/CTB

≥65 dB

Output = 104 dBμV EQ = 0 dB

C/CSO

≥60 dB

General Parameter

Power Supply Voltage

AC: 150 VAC to 265 VAC

DC: ‑48 VDC to 0 VDC

Working Temperature

‑40 °C to +60 °C

Storage Temperature

‑40 °C to +60 °C

Relative Humidity

≤95 %

Power Consumption

≤30 VA

Dimensions (L×W×H)

483 mm × 265 mm × 44 mm
