25G SFP28 AOC Cable

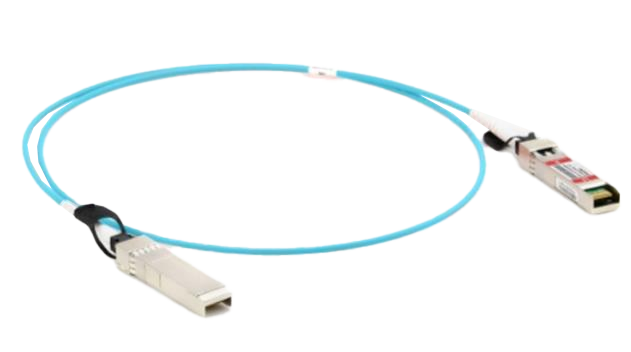

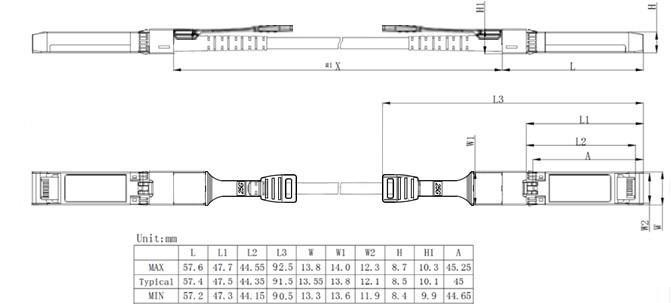

Ascent’s SFP28 active optical cable assembly features provides data transmission channels at speeds up to 25.78 Gbps, and 25G Ethernet requirements. It is available in a broad range of wire gages and wire lengths. This 25G cable assembly is hot-pluggable and features low power consumption. It is suitable for 25GBASE-SR Ethernet applications, and is compliant with SFP+ MSA, SFF-8431 and SFF-8432. Designed for applications in the data center, networking and telecommunications markets that require a high speed, reliable cable assembly, this next generation product shares the same mating interface with QSFP+ form factor, making it backward compatible with existing QSFP ports. QSFP28 can be used with current 10G and 14G applications with substantial signal integrity margin.

• Up to 25.7813 Gbps Data Links

• 850 nm VCSEL laser transmitter and PIN/TIA receiver

• Maximum link length of 100m on OM3 MMF

• Hot-pluggable SFP+ footprint

• Power consumption less than 1W

• RoHS compliant and lead-free

• Supports Digital Diagnostic Monitor interface

• +3.3V Single power supply

• Case operating temperature Commercial: 0°C to +70°C
• Compliant with SFF-8432

• RoHS compliant

Absolute Maximum Ratings

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Maximum Supply Voltage	Vcc	-0.5		3.6	V
Storage Temperature	Ts	-40		85	°C	1
Case Operating Temperature	Top	0		70	°C
Relative Humidity	RH	0		85	%	2

Notes:

1. Limited by the fiber cable jacket, not the active ends.
2. Non-condensing.

Electrical Characteristics (TOP V_CC=0 to 70°C,=3.3 ± 5% Volts)
Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Supply Voltage	Vcc	3.15	3.45		V
Supply Current Transmitter	Icc		300		mA
Input differential impedance	Rin		100		Q	1
Differential data input swing	Vin,pp	200	1000		mV
Transmit Disable Voltage	VD	2	VCC		V
Transmit Enable Voltage Receiver	Ven	Vee	Vee+0.8		V
Differential data output swing	Vout,pp	200	100		mV	2
LOS Fault	VLOS_fault	2	VccHOST		V	3
LOS Normal	VLOS_norm	Vee	Vee+0.8		V	3
Power Supply Noise Tolerance	Vcct/Vccr	Per SFF-8431 Rev 4.1			mVpp	4

Notes:

1. Connected directly to TX data input pins.AC coupling from pins into laser driver IC.

2. Into 100 Q differential termination.

3. 20 % to 80 %. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1's and four 0's in sequence in the PRBS^A9 is an acceptable alternative. SFF-8431 Rev 4.1

4. LOS is an open collector output. Should be pulled up with 4.7 kQ to 10 kQ on the host board. Normal operation is logic 0; loss of signal is logic 1. Maximum pull-up voltage is 5.5 V.

5. Testing methodology per SFF-8431. Rev 4.1
