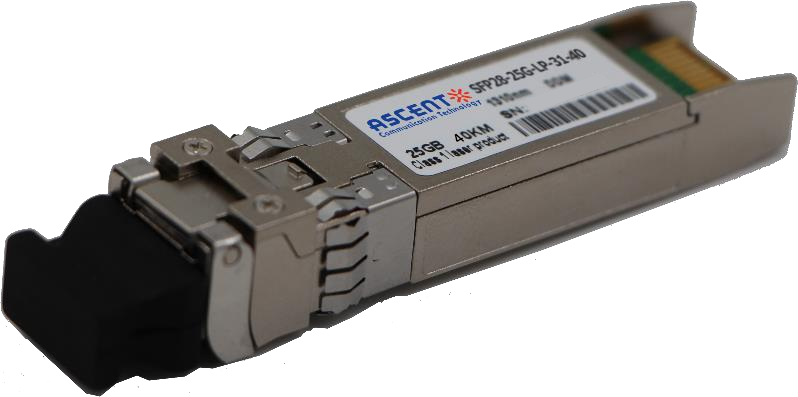

Ascent’s SFP28 25Gb/s transceiver is an integrated fiber optic transceiver that provides a high-speed serial link at signaling rates up to 25.78 Gb/s. It is a single- channel, pluggable, fiber-optic module for short-range data communication and interconnect Ethernet applications. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. It has a transmission distance of up to 300 m on OM3 and 400 m on OM4 multi-mode fibers. The optical interface uses duplex LC receptacle. This module incorporates proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service. The SFP28-25LP-85-03 module has the rate adaption and its operating temperature is ranging from 0°C~70°C for commercial usage and -40°C ~85°C for industrial usage.
· 25Gbps serial optical interface
· 850nm VCSEL transmitter and GaAs PIN PD receiver
· Rate Adaptation
· Operating temperature:
Commercial (0°C~70°C)
Industrial (-40°C~85°C)
· Maximum link length of 300m via OM3 multimode Fiber (MMF)
· Maximum link length of 400m via OM4 multimode Fiber (MMF)
Parameter | Symbol | Min. | Typ. | Max. | Unit |
Storage Temperature | Ts | -40 | - | 85 | °C |
Relative Humidity | RH | 0 | 85 | % |
Recommended Operating Conditions
Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes |
Case Temperature | Tc | 0 | - | 70 | °C | 1 |
-40 | - | 85 | 2 | |||
Power Supply Voltage | VCC | 3.15 | 3.3 | 3.45 | V | |
Bit Rate | BR | 25.78125 | Gbps |
Parameter Transmitter | Symbol
| Min.
| Typ.
| Max.
| Unit | Notes
|
Center Wavelength | λ | 840 | 860 | nm | ||
RMS Spectral Width | Pm | 0.6 | nm | |||
Average Optical Power | Pavg | -5 | 2.4 | dBm | ||
Optical Modulation Amplitude | OMA | -5 | 3 | dBm | ||
Average Launch Power of OFF Transmitter | Poff | 0.6 | nm | |||
Extinction Ratio | ER | 3 | dB | |||
Optical Return Loss Tolerance | 12 | dB | ||||
Receiver | ||||||
Center Wavelength | λ | 840 | 850 | 860 | nm | |
Damage Threshold | 3.4 | dBm | ||||
Receive Power Overload | 2.4 | dBm | ||||
Receiver Reflectance | -12 | dBm | ||||
Receiver Sensitivity | SENS | -5 | dBm | 1 | ||
Receiver Sensitivity | SENS | -10 | dBm | 2 | ||
LOS Assert | LOSA | -30 | dBm | |||
LOS De-assert | LOSD | -13 | dBm | |||
LOS Hysteresis | LOSH | 0.5 | dB |
Note:
1. Measured with a 25.78125G, PRBS-31 NRZ, ER>3.5dB, BER<1E-12.
2. Measured with a 25.78125G, PRBS-31 NRZ, ER>3.5dB, BER<5E-5.
Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes |
Power Consumption | 1 | W | ||||
Supply Current | Icc | 100 | 300 | mA |
Digital Diagnostics
Parameter | Accuracy | Unit |
Internally Measured Transceiver Temperature | +/-3 | °C |
Internally Measured Transceiver Supply Voltage | +/-3 | % |
Measured Tx bias Current | +/-10 | % |
Measured Tx Output Power | +/-3 | dB |
Measured Rx Received Average Optical Power | +/-3 | dB |
