Modular MPO Cassette

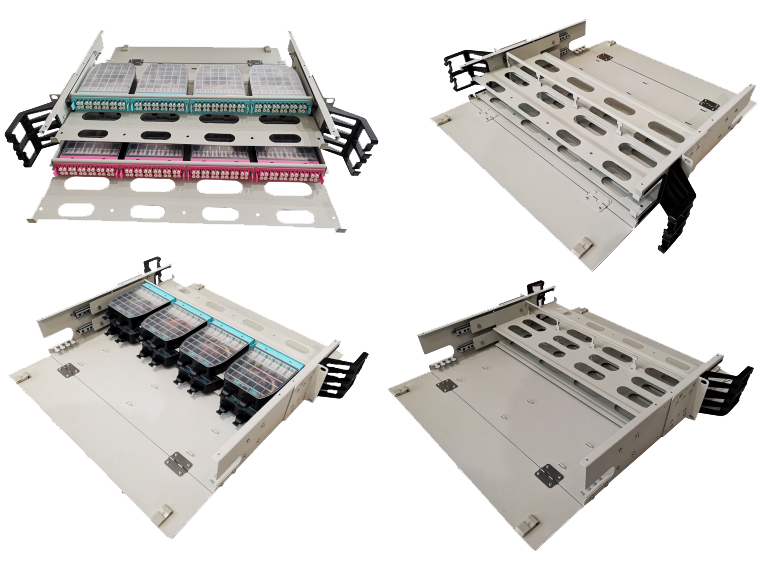

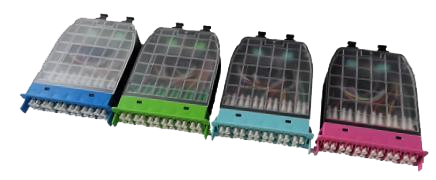

Ascent's AOP-ODF MPO Cassette is a compact, high-density fiber optic module designed to simplify MPO/MTP-based optical distribution in data centers, enterprise networks, telecommunications, and FTTx applications. Compatible with the Ascent Modular Optical Distribution Frame (ODF) Series, the cassette enables rapid deployment and efficient migration between backbone MPO trunk cabling and LC or SC fiber interfaces, providing a scalable solution for structured fiber cabling systems. The cassette accommodates up to two MPO/MTP adapters and supports up to 12 duplex LC or 12 simplex SC adapters, providing a maximum capacity of 24 fiber connections within a compact modular enclosure. Constructed from high-impact ABS material, the cassette features a removable adapter plate and a translucent protective cover for easy fiber inspection while protecting internal fiber routing from dust and accidental damage. The modular, tool-free design enables fast installation, replacement, and maintenance, minimizing network downtime. Designed for high-performance optical networks, the AOP-ODF MPO Cassette supports OS2, OM3, and OM4 fiber types and is available in multiple connector configurations to meet diverse application requirements. Its flexible modular architecture makes it an ideal solution for high-density fiber management, structured cabling, data center expansion, and next-generation optical network deployments.
