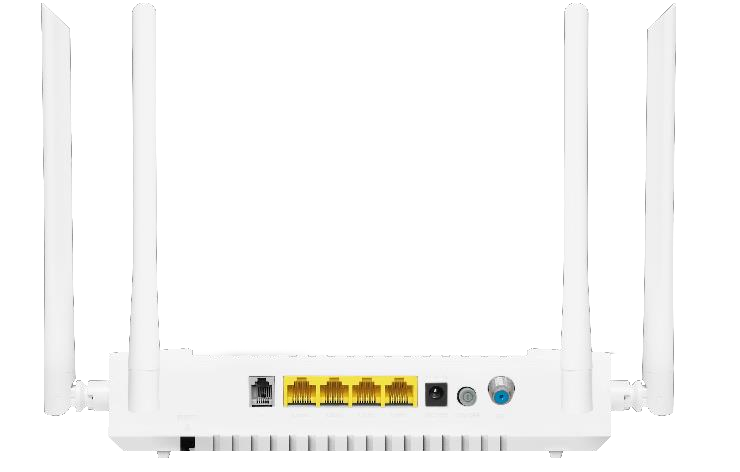

AP214C AC1500 XPON ONU

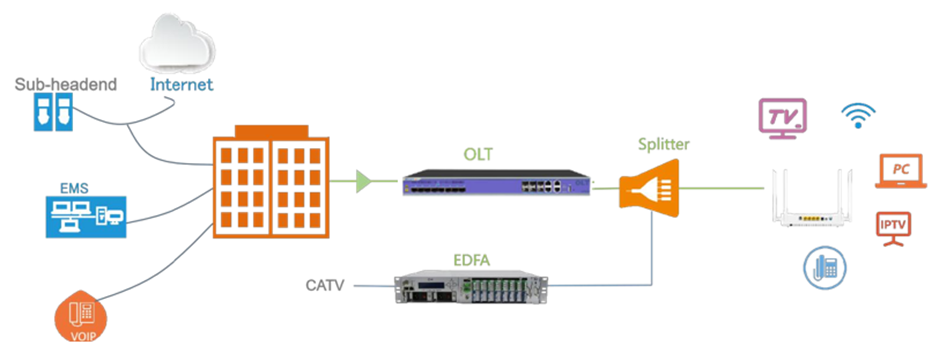

The AP214C Series AX1500 XPON ONU is a carrier-grade fiber broadband gateway designed to deliver quad-play services including high-speed Internet, Voice, CATV, and Wi-Fi 6 connectivity over a single fiber connection. Integrating dual-mode GPON/EPON technology, four Gigabit Ethernet ports, one POTS voice interface, CATV RF output, and dual-band AX1500 Wi-Fi 6, the AP214C provides a complete FTTH solution for residential, hospitality, and multi-service broadband deployments. The ONU automatically adapts to GPON or EPON networks and offers seamless interoperability with mainstream OLT platforms. The AP214C combines high-speed broadband access, SIP-based VoIP services, CATV distribution, and next-generation wireless networking within a single compact device. Equipped with one XPON optical interface, four Gigabit Ethernet ports, one FXS voice port, and an integrated CATV optical receiver supporting 1550nm input, the ONU enables operators to efficiently deliver broadband, IPTV, voice, and television services. Advanced features including Dynamic Bandwidth Allocation (DBA), VLAN management, QoS, IGMP Snooping/Proxy, AES encryption, EasyMesh support, and firewall protection ensure optimized network performance, enhanced security, and superior user experience. Designed for carrier-grade reliability and simplified network operation, the AP214C supports ONU auto-discovery, remote software upgrades, SNMP-based management, CATV remote control, and multiple authentication methods including SN and LOID+Password. Its integrated service architecture, low power consumption, and AX1500 Wi-Fi 6 performance make it an ideal solution for operators seeking to deliver converged voice, video, broadband, and wireless services through a single customer premises device.
