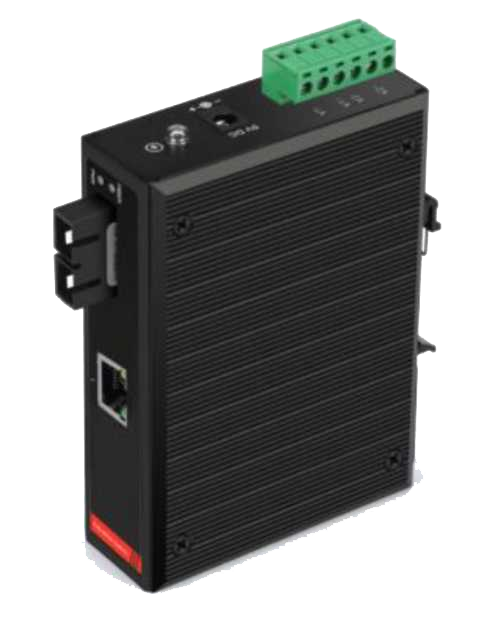

AMC201E Media Converter

Ascent’s AMC201E is a new generation power over Ethernet Industrial media converter with 1-Port 10/100/1000Base-TX and 1-Port 1000Base-FX that provide stable and reliable Ethernet transmission, with high quality design and reliability. It provides Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain. With dual power input design, AMC201E can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 75°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.

·       1 x10/100/1000Base-TX RJ45 ports, 1 x1000Base-FX ports

·       Support Auto-MDIX, and full/half duplex self-negotiation mode

·       Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission

·       Support 10K bytes giant frame, compatible with various extension protocol

·       8K MAC address table

·       Support IEEE802.3az energy efficient Ethernet technology

·       Support IPv6 Protocol

·       Electric 4KV surge protection, easy to use in outdoor environment

·       Complete status indicator, working state at a glance

·       Power input polarity protection design, no worry about wrong operation

·       Metal case, no fan design

·       Installation method: DIN trail /Wall mounting



Item

Description

Physical Port


RJ45 Port and Speed

1x10/100/1000Base-TX

Fiber Port and Speed

1x1000Base-FX

Transmission distance:

Multi-mode: 550meter

Single-mode, 25KM, 40KM,60KM,80KM (optional)

Parameters


Ethernet Standards

IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab

IEEE802.3x IEEE802.3az IEEE802.3ah IEEE802.1X

IEEE802.1Q

Packet Buffer

2Mbits

Maximum Packet Length

Up to10k Bytes

MAC Address Table

8K

Transmission Mode

Store and Forward (full/half duplex mode)

Exchange Property

Delay time: < 7ps

Backplane bandwidth: 1Gbps

Packet forwarding rate: 148810 (64Byte)

LED Indicator


Power

Connect-always

RJ45

Link/Act: connect-always; data exchange-twinkle

Speed light: 1000Mbps-always; 10/100Mbps-off

Fiber

Link/Act: connect-always; data exchange-twinkle

Power Information


Power Access Mode

Phoenix terminal, DC seat

Redundant Power Input

DC 9 - 56V

Overload Protection

Yes

Power Reverse

Support

Power Consumption

Full-load<15W

Physical Property


Protection grade

IP40 aluminum case

Cooling mode

Natural cooling, no fan design

Dimensions

120mm x90mm x 35mm (L x W x H)

Installation mode

DIN trail/wall-mountable

Weight

370g

Working Environment


Operating Temperature

-40 °C to 75 °C

Operating Humidity

5%~90% non-condensing

Storage Temperature

-40 °C to 85 °C

Warranty


MTBF

500,000 hours

Defects Liability Period

3 year warranty, lifetime technical support

Certification Standard


EMI

FCC Part15 Subpart B Class A,EN 55022 Class A

EMS

EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11

Collision

IEC60068-2-27

Drop

IEC60068-2-32

Vibration

IEC60068-2-6

Safety Grade

EN60950-1
