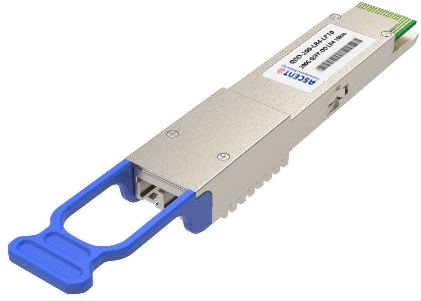

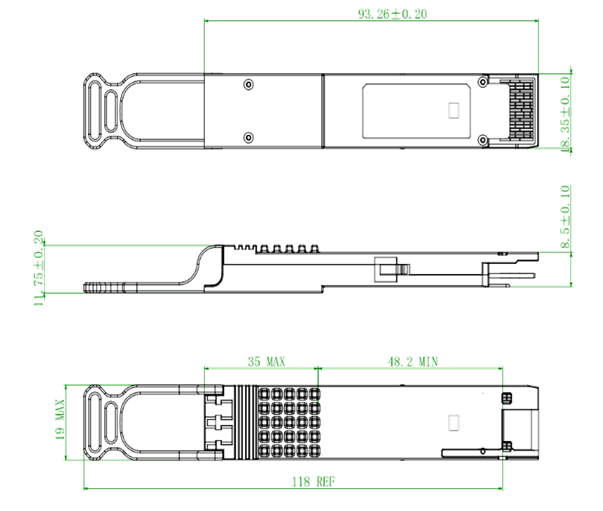

200G QSFP DD LR4 10km

The ACT QDD-200-LR4-LP10 is a high-performance 200 Gb/s QSFP-DD optical transceiver designed for next-generation data center and service provider networks requiring high bandwidth and extended reach. Supporting 200GBASE-LR4 with four LAN-WDM wavelengths over single-mode fiber, the module enables reliable transmission distances of up to 10 km, making it well suited for data center interconnect (DCI), metro aggregation, and high-capacity enterprise applications. Built on PAM4 modulation with a lane data rate of 53.125 Gb/s, the transceiver complies fully with IEEE 802.3cn 200GBASE-LR4, QSFP-DD MSA, and CMIS standards, ensuring broad interoperability with leading network platforms. The module integrates LAN-WDM lasers and PIN receivers in a compact QSFP-DD form factor with LC duplex connector, while maintaining a maximum power consumption of 10 W for efficient thermal performance in high-density environments. Designed for operational reliability, the ACT QDD-200-LR4-LP10 supports comprehensive Digital Diagnostic Monitoring (DDM), allowing real-time access to critical parameters such as temperature, voltage, bias current, and optical power. With the compliance with EU Directive 2015/863/EU (RoHS), this transceiver provides a robust, standards-based solution for scalable 200G optical deployments.

·       Supports 200GBASE-LR4

·       Lane bit rate 53.125 Gb/s with PAM4

·       Up to 10km transmission on SMF

·       LAN WDM laser and PIN receiver

·       200GAUI-8 Electrical interface with 8 Lanes 26.5625Gb/s NRZ high-speed signal

·       QSFP-DD MSA package with duplex LC connector

·       Compliant with IEEE 802.3cn 200GBASE-LR4

·       Single +3.3V power supply

·       Maximum power consumption 10W

·       Operating case temperature: 0 to +70 °C

·       Compliant to QSFP-DD CMIS & QSFP-DD MSA HW standard

·       Complies with EU Directive 2015/863/EU




Absolute Maximum Ratings

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Storage Temperature

TS

-40

-

85

°C


Supply Voltage

VCC

-0.5

-

3.6

V


Operating Relative Humidity

RH

-

-

85

%


Recommended Operating Conditions

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Operating Case Temperature

TC

0

-

70

°C


Power Supply Voltage

VCC

3.13

3.3

3.47

V


Power Supply Current

ICC

-

-

3.03

A

3.3V

Power Consumption

P

-

-

10

W


Aggregate Bit Rate

BRAVE

-

212.5

-

Gb/s

With PAM4

 Lane Bit Rate

BRLANE

-

53.125

-

Gb/s

With PAM4

Transmission Distance

TD

-

-

10

km

Over SMF

Optical Characteristics

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Transmitter







Signaling Rate, each Lane

BR

26.5625 ± 100 ppm

GBd


Modulation Format


PAM4



Lane Wavelengths

L0

1294.53

1295.56

1296.59

nm


L1

1299.02

1300.05

1301.09

nm


L2

1303.54

1304.58

1305.63

nm


L3

1308.09

1309.14

1310.19

nm


Side-Mode Suppression Ratio

SMSR

30

-

-

dB


Total Average Launch Power

PMAX

-

-

11.3

dBm


Average Launch Power, each Lane

POUT

-3.4

-

5.3

dBm

1

Outer OMA, each Lane

OMAouter

-0.4

-

5.1

dBm

2

Difference in Launch Power between Lanes (OMA)


-

-

4

dB


Transmitter and Dispersion Eye Closure for PAM4

TDECQ

-

-

3.2

dB


Average POUT (Laser Turn Off)

POFF

-

-

-30

dBm


Extinction Ratio, each Lane

ER

3.5

-

-

dB


Receiver

Signaling Rate, each Lane

BR

26.5625 ± 100 ppm

GBd


Modulation Format


PAM4



Lane Wavelengths

L0

1294.53

1295.56

1296.59

nm


L1

1299.02

1300.05

1301.09

nm


L2

1303.54

1304.58

1305.63

nm


L3

1308.09

1309.14

1310.19

nm


Damage Threshold, each Lane

PDAMAGE

6.3

-

-

dBm

3

Average Receive Power, each Lane

PRX _LANE

-9.7

-

5.3

dBm

4

Receive Power (OMAouter), each Lane

RXOMA

-

-

5.1

dBm


Receiver Sensitivity (OMAouter), each Lane

SENOMA

-

-

-7.2

dBm

5

Note:

1.       Average launch power, each lane (min) is informative and not the principal indicator of signal strength. A

          transmitter with launch power below this value cannot be compliant; however, a value above this does not

          ensure compliance.

2.       Even if the TDECQ < 1.4 dB for an extinction ratio of ≥ 4.5 dB or TDECQ < 1.3 dB for an extinction ratio of < 4.5 dB,

          the OMAouter (min) must exceed this value.

3.       The receiver shall be able to tolerate, without damage, continuous exposure to an optical input signal having this average power level.

4.       Average receive power, each lane (min) is informative and not the principal indicator of signal strength. A received power below this value cannot be compliant; however, a value above this                does not ensure compliance.

5.       Measured with conformance test signal at TP3 for the BER 2.4E-4.

Electrical Characteristics

High-Speed Signal:      Compliant to 200GAUI-8 (IEEE 802.3bs)

Low-Speed Signal:       Compliant to QSFP-DD-Hardware.

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Transmitter

(Module Input)







Differential Data Input Amplitude

VIN,P-P

900

-

-

mVpp


Differential Termination Mismatch


-

-

10

%


Receiver (Module Output)

Differential Data Output Amplitude

VOUT,P-P

-

-

900

mVpp


Differential Termination Mismatch(1MHZ)


-

-

10

%


Low-speed Electrical Interface

LPMode, ResetL,

VIL

-0.3

-

0.8

V


ModSelL and ePPS

VIH

2.0

-

VCC+0.3

V


ModPrsL

VOL

0

-

0.4

V


VIH

ModPrsL can be implemented as a short-circuit to GND on the module

IntL

VOL

0

-

0.4

V


VOH

VCC-0.5

-

VCC+0.3

V




Series Recommendation
