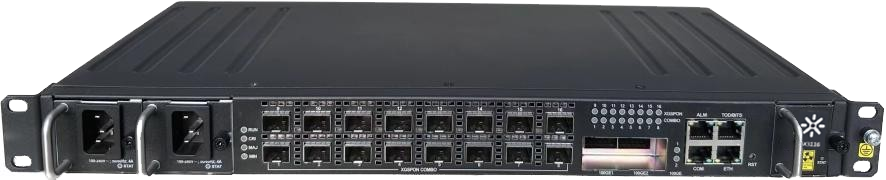

AX3100_XGSPON_OLT

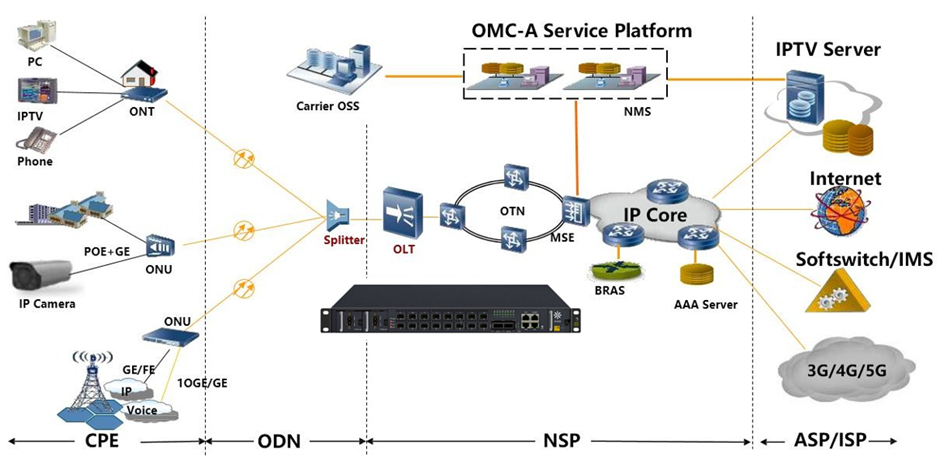

Ascent’s AX3100 series is a pizza box platform which supports GPON/XGPON/XGSPON and fully complies with ITU-T G.984/G.987/G.988/G.9807 standards. AX3100 OLTs provide an end-to-end 10 Gbps optical last mile solution for multiple services to residential and business customers. AX3100 supports up to 16/8 *XG(S)PON&GPON Combo PON ports in a 1RU form factor. It provides high subscriber density and low cost of entry, combined with the operational cost savings of GPON technology make a compelling alternative to legacy, last-mile access solutions. AX3100 supports 5 T-CONT types compliance with ITU-T G.984.3 as well. The enriched QoS features such as traffic policy/traffic shaping/rate limit/schedule allow operators to provision flexible bandwidth allocate policy for multiple customized service. AX3100 also supports SNMP/CLI for remote management. Powerful OMCI functions enable remote diagnostics, flexible provisioning, and reconfiguration of the NMS platform.

·       ITU-T G.984/G.987/G.98/G.9807 compliant 10Gbps/2.5Gbps downstream and 10Gbps/2.5bps

      /1.25Gbps upstream PON ports

·       Redundant power, PON protection

·       16/8*Combo PON ports in 1U 19-inch Pizza Box

·       Advanced L2 functions

·       Abundant QoS functions

·       Unified NMS platform

·       Remote provision and management

·       Supports 100GE/25GE/10GE uplink

·       Supports 5 T-CONT types compliance with ITU-T G.984.3 as well

·       Supports SNMP/CLI for remote management


Parameter

Description


Physical Characteristics


AX3108

AX3116

Dimensions (W×D×H)

482 mm × 286 mm × 44 mm


Weight

4.4 kg

4.8 kg

Fans

Hot-swappable


Power

DC: –48V / AC: 110V/220V (Pluggable with power redundancy)

Power Consumption

190 W (typical)

248 W (typical)

Uplink

2x100GE & 4x10/25GE

2x100GE

PON

8*Combo PON ports

16*Combo PON ports

PON Fiber

SM, BIDI


PON Interface Type

SC/UPC


Switch/Interface Characteristics

Switch Capacity

800 Gbps


Throughout

595Mpps


Flash Size

64MB + 8 GB


Throughput

446Mpps


Memory Size

4 GB


Split Ratio

1:128 (GPON, XG(S)-PON)


Bandwidth

GPON: 1.25 Gbps (US), 2.5 Gbps (DS)



XG-PON: 2.5 Gbps (US), 10 Gbps (DS)



XGS-PON: 10 Gbps (US), 10 Gbps (DS)


Wavelength

GPON: 1310 nm (US), 1490 nm (DS) XG(S)PON: 1270 nm (US), 1577 nm (DS)

Compliance


ITU-T G.984/G.987/G.988/G.9807



IEEE 802.1D, Spanning Tree



IEEE 802.1Q, VLAN



IEEE 802.1w, RSTP



IEEE 802.3ad, LACP



Ethernet – II


Environment

Operating Temperature

0°C to 40°C (with commercial SFP)



-20°C to 65°C (with industrial SFP)


Storage Temperature

-40°C to 70 °C


Relative Humidity

10 % to 90 %, non-condensing


Features

PON

Splitter Ratio: 1:128 (GPON, XG-PON, XGS-PON)


Support B+/C+/C++ GPON transceiver



Support N1/N2/E2 XG-PON or XGS-PON transceiver


Support N1/B+, N2/C+, E2/D Combo transceiver


SN / SN+Password ONU authentication



FEC



ONU Digital Diagnostic Monitor



Rogue ONU Detection


PTP

Support IEEE 1588 V2, G.8265.1, G.8275.1, G.8275.2

L2

Line-speed switch/forwarding



250K MAC address table



Port-based VLAN, Protocol-based VLAN, 802.1q VLAN ONU-based QinQ, 1:1/N:1 VLAN translate


LACP/LAG STP/RSTP/MSTP



Port Mirror



Flow control / Back pressure Broadcast/DLF/Unknown Multicast storm control

Multicast

IGMPv1/v2 snooping MLDv1 snooping


IGMP snooping with Proxy Fast Leave

QoS (Quality of Service)

IEEE 802.1p, 8 CoS queue


SP/WRR/SP+WRR


IPv4 TOS/IP Predence


Classification/Shaping/Policy/Rate limit/Schedule


DBA


ONU-based bandwidth control in downstream

Security

SSH


ACL


User isolation


Encryption in PON downstream DHCP Option82 / PPPoE+

OAM

FTP/TFTP, Ethernet OAM


SNMP v1 & v2c, Telnet (IPv4/IPv6), Console (CLI) In-band/out-band management


Auto provision for ONU configuration PM



Series Recommendation
