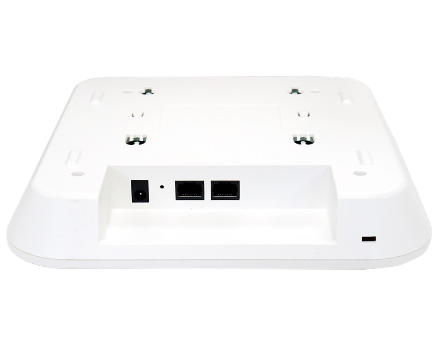

WAP210 Wireless AP

The WAP210 Series is a ceiling-mounted wireless access point designed for high-density deployment in environments such as enterprises, campuses, hospitals, government offices, hotels, and smart buildings. Built with a high-performance RF chip and omnidirectional MIMO high-power antenna, it delivers strong throughput, broad coverage, and reliable concurrent access, effectively minimizing dead zones and maximizing WLAN performance. With support for PoE and adaptor power input, the WAP210 Series offers flexible deployment options while maintaining an energy-efficient design. It complies with 802.11a/b/g/n/ac/ax/be standards, supports up to 32 SSIDs, and can handle up to 256 concurrent users, making it well-suited for large-scale wireless scenarios that require stability and scalability. The series also provides rich functionality, including FIT and FAT AP modes, multiple authentication options (SNS, SMS, whitelist), and universal network management through cloud platforms and Portal 2.0. Combining advanced performance with a sleek ceiling-mount design, the WAP210 Series is an ideal solution for organizations seeking a cost-effective and reliable wireless network infrastructure.

·         Support high-performance wireless solutions

·         Support wired and wireless QoS, automatic terminal identification

·         Support WEP/WPA/WAP2/WPA3 access modes, wireless IPS/IDS, the layer-2 user isolation, and

       centralized ACL control

·         Support docking with WAP210 wireless AC and Pallas cloud platform

·         Equipped with LED controllable design

·         Support the integrated design of fat and thin APs



Product Characteristics

Item

Technical Parameters




WAP210-T618-V2

WAP210-T630-V2

WAP210-T630E-V2

Ethernet Port



1-port Gigabit WAN (PoE) 1-port Gigabit LAN

1-port Gigabit WAN (PoE) 1-port Gigabit LAN

1-port 2.5GE WAN (PoE) 1-port Gigabit LAN


Frequency

2.4GHz + 5GHz

2.4GHz + 5GHz

2.4GHz + 5GHz


IEEE Standard

802.11 a/b/g/n/ac/wave2/ax

802.11 a/b/g/n/ac/wave2/ax

802.11 a/b/g/n/ac/wave2/ax


Max. Data Rate(Mbps)

1775

2975

2975


Signal Rate

575 Mbps (2.4 GHz) 1200 Mbps (5 GHz)

575 Mbps (2.4 GHz) 2400 Mbps (5 GHz)

575 Mbps (2.4 GHz) 2400 Mbps (5 GHz)


MIMO

2x2/2x2

2x2/2x2

2x2/2x2


Transmission Power

< 22 dBm (2.4 GHz)

< 22 dBm (5 GHz)

< 22 dBm (2.4 GHz)

< 22 dBm (5 GHz)

< 21 dBm (2.4 GHz)

< 22 dBm (5 GHz)


Coverage Radius(m)

<20

<20

<20


Concurrent Clients

128

128

150


Button

1 RST/LED

1 RST/LED

1 RST/LED


Power Supply

PoE + 12V DC

PoE+ 12V DC

PoE + 12V DC


Power Consumption(W)

17

17

14


Mounting

Ceiling/Wall mouting(Kits included)

Ceiling/Wall mouting(Kits included)

Ceiling/Wall mouting(Kits included)


Dimensions (WxDxH)(mm)

180x180x26

180x180x26

225x220x42


Weight(g)

400

400

700



WAP210-T654

WAP210-T751-V1



Ethernet port

1-port 2.5GE WAN (PoE) 1-port Gigabit LAN

1-port 2.5GE WAN (PoE) 1-port Gigabit LAN



Frequency

2.4GHz + 5GHz

2.4GHz + 5GHz



IEEE Standard

802.11 a/b/g/n/ac/wave2/ax

802.11 a/n/ac/wave2/ax/be



Max. Data Rate(Mbps)

5375

5011



Signal Rate

575 Mbps (2.4 GHz) 4800 Mbps (5 GHz)

688 Mbps (2.4 GHz) 4323 Mbps (5 GHz)



MIMO

2x2/4x4

2x2/3x3



Transmission Power

< 29 dBm (2.4 GHz)

< 30 dBm (5 GHz)

< 23 dBm (2.4 GHz)

< 22 dBm (5 GHz)



Coverage Radius(m)

<30

<20



Concurrent Clients

256

150



Button

1 RST/LED

1 RST/LED



Power Supply

PoE + 12V DC

PoE+ 12V DC



Power Consumption(W)

22

14



Mounting

Ceiling/Wall mouting(Kits included)

Ceiling/Wall mouting(Kits included)



Dimensions (WxDxH)(mm)

198x198x44

225x220x42



Weight(g)

960

700



Environment

Operating Temperature: 0 to 50°C (32 to 122°C )

Storage Temperature: -40 to 70°C (-40 to 158°C )

Operating Humidity: 10-95% RH non-condensing

Storage Humidity: 5-95% RH non-condensing


Protection Level

IP31











Software Characteristics

Item

Technical Parameters

Working Mode

AP Mode, Routing mode, Bridging Mode



IP Functions

IPv4, DHCP, NTP protocols

Address acquisition methods such as static IP assignment, dynamic DHCP,

and PPPoE



Wireless Management

CAPWAP and MQTT

Allows AC discovery through Option 43, DNS, etc.

Layer 2 and Layer 3 networking between AC and AP

AC and AP cross-NAT networking

User roaming across Layer 2 and Layer 3

Clock, version and configuration synchronization of AC and AP



Wireless Access

802.11 protocol suite

multi-SSID management, Chinese SSID and SSID hiding

Unbinding of SSID and VLAN

SSID-based user limit and isolation

Allows setting Individual parameter templates for each SSID

Country code settings



User Authentication

Local authentication and Cloud authentication

Multiple authentication methods such as local account, SMS, WeChat, and vouchers

User whitelist and blacklist

Controls user access time and bandwidth



QoS



802.11e/WMM

Global traffic rate limit

Traffic rate limiting based on AP, VLAN, and user

User load balancing based on wireless bands and AP



Wireless Optimization

One-click automatic network optimization and custom RF parameter settings

Default 8 wireless scene templates, user-defined templates

Automatic  background optimization without manual intervention

5G priority access and restrictions on low-rate users



Security

PSK authentication method

Wireless encryption with WEP, WPA, WPA2, and WPA3

Security filtering based on IP and MAC

Protects against DDoS, De-Auth, and similar attacks

Rogue AP detection



Application Added

For RTLS probes

Docking wireless positioning system



Management and Maintenance

Traditional device management such as Telnet, SSH, Web, SNMP and Cloud

Diagnostic tools such as ping, tracert, and debug

Centralized AC management via CAPWAP and MQTT

PALLAS unified cloud management

AP indicator light control
