Base Station Cable

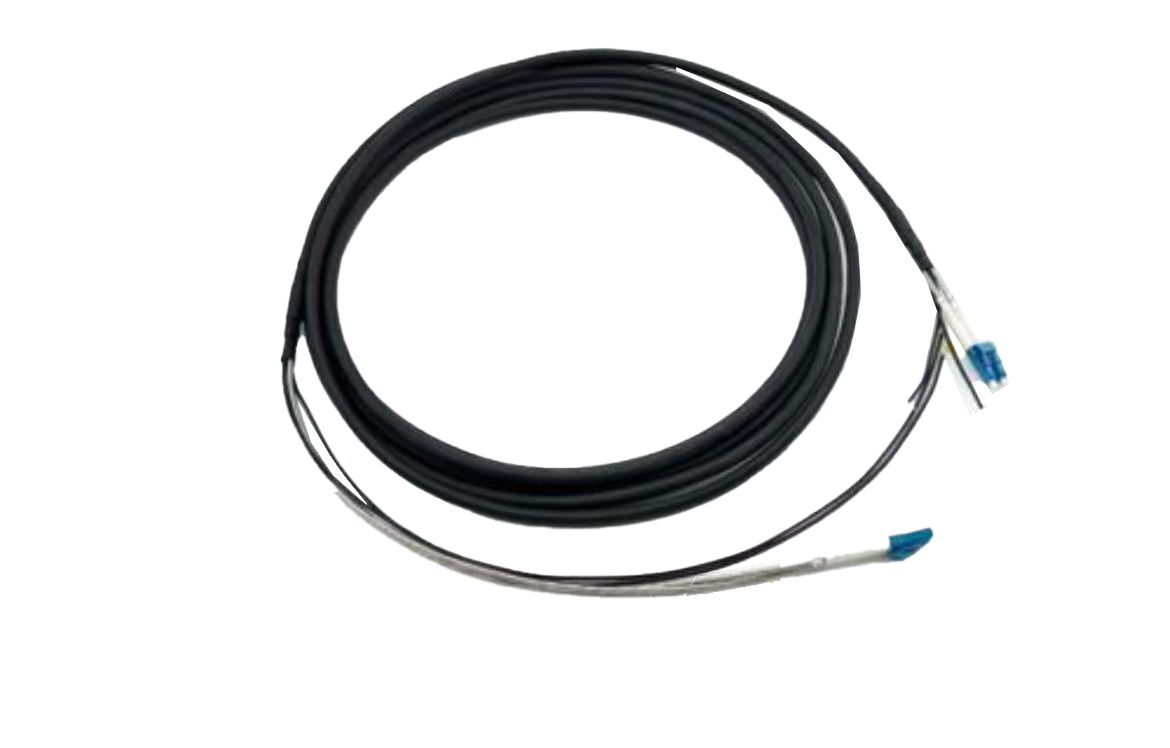

The SM/MM 5.0mm LSZH FTTA Fiber Optic Jumper is designed for high-reliability outdoor fiber connectivity applications, particularly in FTTA (Fiber To The Antenna) deployments. The cable features a rugged 5.0mm LSZH (Low Smoke Zero Halogen) outer jacket, providing excellent mechanical strength, environmental resistance, and enhanced safety performance in harsh outdoor environments. This jumper is engineered to support both Single Mode (SM) and Multi-Mode (MM) fiber types, ensuring stable, low-loss signal transmission for telecom base stations, wireless infrastructure, and outdoor network installations. Compatible with conventional LC, FC, SC, and ST connectors, as well as outdoor waterproof connector systems such as NSN, ODVA, PDLC, and Mini-SC, this FTTA jumper is ideal for demanding telecom and 5G network applications.
· UV-resistant and weatherproof structure
· Anti-rodent protection
· Excellent tensile strength and crush resistance
· Stable performance under temperature variations
· Reliable connection for outdoor base station tower tops and BBU-to-RRU links

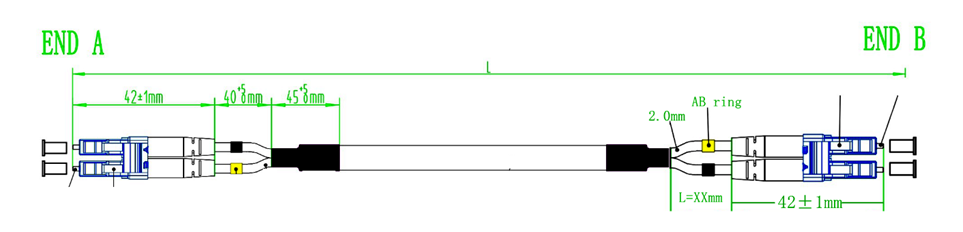

Item | Description |
Type | Length (mm) |
BSC-XXX | XXX |
BSC-5000 | 5000 |
BSC-10000 | 10000 |
BSC-70000 | 70000 |
BSC-100000 | 100000 |
Length (m) | Tolerance (mm) |
L < 5 | +100/-0 |
L ≥ 5 | +2%L/-0 |
Item | Description |
Connector A | DLC/DSC/DFC/UPC, multi-mode(SM/MM) |
Connector B | DLC/DSC/DFC/UPC, multi-mode(SM/MM) |
Cable | 5.0mm 2F cable, LSZH, Black |
Item | Description |
Cable | |
Fiber | OM2,50/125um/OS2 G657A2,9/125um optical fiber according to ITU-T G651 2 |
Fiber Count | |
Optical Fiber Loss | ≤2.5dB/km @ 850nm ≤0.35dB/km @ 1310nm ≤0.21dB/km @ 1550nm |
Assembly | |
Insertion Loss Return Loss
| Max.0.5dB+3.5dB/km*L @850nm Max.0.5dB+1.5dB/km*L @1310nm according to IEC 61300-3-4 Method C Min.30 dB according to IEC 61300-3-6 method 1 |

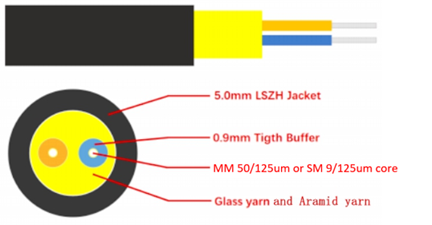

Item | Description |
| |
Out Jacket | 5.0±0.2mm,LSZH,Black |
Strength Member | Glass yarn and Aramid yarn |
Item | Description |
Connector | |
Mating Durability | 200 cycles |
Tensile Strength (Cable and Connector Connection Point) | 120N |
Cable | |
Minimum Bending Radius | Installation,75mm |
Operation,50mm | |
Tensile Strength (according to IEC 60794-1-2 E1) | Max 400N |
Crush (According to IEC 60794-1-2 E3) | Max 3000N/10cm |
