AIE200 L3 Lite Switch

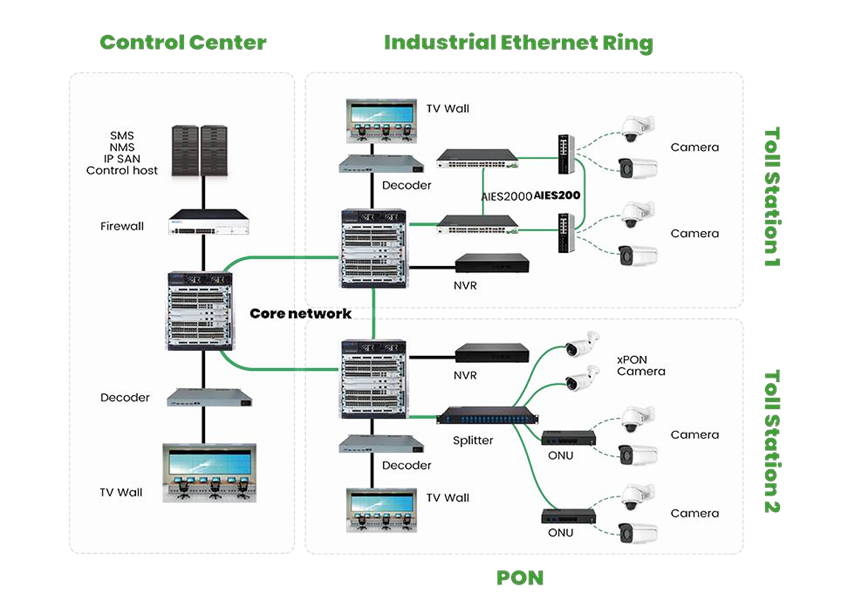

ASCENT AIES200-L25 series is built on a new generation of high-performance industrial hardware and the robust BDROS platform, incorporating latest technology to deliver carrier-grade reliability. Designed for demanding industrial environments, the AIES200-L25 series supports ACL, QinQ, QoS, and static routing while offering wide-voltage dual power input through its standard DIN-rail metal enclosure. Engineered for mission-critical networks, AIES200-L25 adopts a highly reliable industrial Ethernet ring technology, enabling hardware-accelerated protection switching. The self-healing time per node is less than 5 milliseconds, and a full-ring recovery typically completes within 50 milliseconds—ensuring real-time service continuity. With enhanced EMC protection, anti-vibration and anti-shock design, and IP40 environmental hardening, the AIES200-L25 series is well suited for harsh industrial deployments. These capabilities make it a powerful platform for energy systems, transportation networks, industrial automation, environmental monitoring, and security or military applications, where long-term stability and rapid fault recovery are essential.

· Lightning protection level: 6KV.IP40 protection, industrial fanless thermal conduction.DIN-rail aluminum alloy shell, which is compact and convenient

· Supports node self-healing time less than 5 milliseconds, and ring network self-healing time less than 50 milliseconds (typical value)

· Supports forming a selfhealing ring network between any two ports, and supports multiple independent self-healing rings

· Provides a data packet loss protection mechanism for quickly recovering from failures

· Provides hierarchical bandwidth services through rate limiting and traffic shaping in the layer-2 QoS function

· Supports simple network management protocol (SNMP) and cloud-based operating platform (Pallas)

· The mean time between failures exceeds 800,000 hours

Product Characteristics

Item			Unit	Description
				AIES200-L25-4T2S	AIES200-L25-8T2S	AIES200-L25-8T4S
Gigabit Interface		RJ45		4	8	8
		SFP		2	2	4
Console(RJ45)				1	1	1
Backplane			Gbps	20	20	56
Forwarding Rate			Mpps	9	15	18
Chassis	Dimensions (WxDxH)		mm	138x108x51	138x108x51	164x107x51
	Weight(Empty)		kg	0.6	0.6	0.6
Package	Dimensions (WxDxH)		mm	245x190x60	245x190x60	245x190x60
	Weight		kg	0.8	0.8	0.8
Power Consumption	No-Load		W	<12	<12	<12
	Full-Load		W	18	18	20
Power Supply				Dual DC 12 to 55V (Pheonix) DC 12V (Jack)	Dual DC 12 to 55V (Pheonix) DC 12V (Jack)	Dual DC 12 to 55V (Pheonix) DC 12V (Jack)
Total Output BTU (1000BTU/H=293W)				61.43	61.43	68.26
MTBF(H)				>800,000	>800,000	>800,000
Forwarding Mode				Store-Forward	Store-Forward	Store-Forward
Flash			MB	16	16	16
DRAM			MB	128	128	128
MAC			K	8	8	8
Buﬀer Size			MB	4.1	4.1	4.1
Jumbo Frame			K	9	9	9
Total SVI				10	10	10
