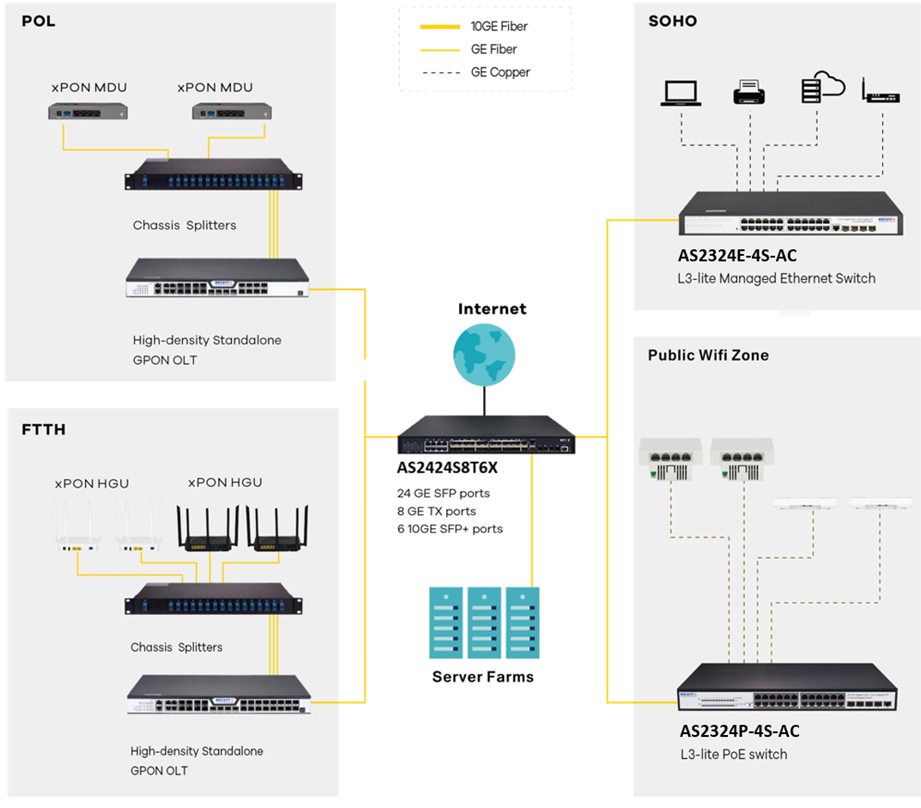

ACT AS2300 series Optical Fiber Gigabit Ethernet Switch is a new generation, intelligent and high-performance L3-Lite switches which provide network operators and service providers with a cost-effective access layer for Fast Ethernet P2P services in Fiber to The Home/Business (FTTH & FTTB) networks. AS2300 series includes standard non-POE and POE versions with two base models each: AS2308, AS2324. The platform provides high-density ports with flexible configuration options and a user-friendly interface to allow operators to quickly and easily expand their existing networks and services. AS2300 series is designed for carrier's IP MAN and enterprise networks. Based on the latest hardware and BDROS platform, it supports functions such as ACL, QinQ and QoS. It’s simple management mode and flexible installation can meet the requirement of any complicated scenarios. AS2300 offers compatibility with all existing Fast Ethernet or Gigabit Ethernet devices in the network. It provides high-performance switching and seamless cooperation with ACT routing and switching products. Combined with ACT’s Video Overlay package, the AS2300 can provide the perfect end-to-end FTTX solution in offering advanced video, voice, and data services.
• Supports the carrier-level Ether-net-ring protection protocol
• Powerful ACL functions to access and control L2 to L7 data based on physical port
• Supports In-Service Software Up-grade (ISSU)
• Supports various L2 multicast functions such as IGMP-snooping, fast-leave and MVR to fully meet the operation requirements of carrier’s IPTV
• Supports the IPv6 protocol suite, IPv6 neighbor discovery, ICMPv6 and Path MTU discovery
• Supports priority retagging and complicated flow classification based on VLAN
• Provides flexible bandwidth control policies
• Supports multiple queue schedule algorithms such as SP, WRR and “SP + WRR”
• Equipment-level security
• Low power consumption to save on maintenance and services costs
• SNMP remote web management
• Supports FTP,TFTP and SFTP, ISSU, SNMP and NMS smart network management platform
Item | Unit | AS2308E-2S-AC | AS2324E-4S-AC |
Interface | 8-Port Gigabit RJ45 2-Port Gigabit SFP | 24-Port Gigabit RJ45 4-Port Gigabit SFP | |
Console | 1 RJ45 port, 1 RST button | 1 RJ45 port, 1 RST button | |
Backplane | Gbps | 20 | 56 |
Forwarding Rate | Mpps | 15 | 42 |
Chassis | |||
Dimensions(W×D×H) | mm | 280 x 180 x 44 | 440 × 210 × 44 |
Weight (Empty) | kg | 1.55 | 2 |
Package | |||
Dimensions(W×D×H) | mm | 346 x 289 x 92 | 555 x 295 x 88 |
Weight | kg | 2.55 | 3 |
Power Consumption | |||
No-Load | W | <3 | <7 |
Full-Load | W | 10 | 20 |
Power Supply | |||
AC: 100V-240V, 50Hz±10% | W | 15 | 25 |
Total Output BTU (1000BTU/H=293W) | 51.19 | 85.32 | |
Fan Number | No | No | |
Noise@25(dBA) | °C | 0 | 0 |
MTBF | H | >200,000 | >200,000 |
Forwarding Mode | Store-forward | Store-forward | |
Flash | MB | 16 | 16 |
DRAM | MB | 128 | 128 |
MAC | K | 8 | 8 |
Buffer Size | MB | 4.1 | 4.1 |
Jumbo Frame | K | 9 | 9 |
Total SVI | 10 | 10 |
Item | Description |
VLAN | 4K Active VLAN QinQ & Selective QinQ GVRP, Private VLAN Voice VLAN |
Spanning Tree | 802.1D(STP) 802.1W(RSTP) and 802.1S(MSTP) BPDU guard, root guard and loopback guard |
Multicast | IGMP v1/2/3 IGMP Snooping IGMP Fast Leave IGMP Filter MVR |
IP | Static route RIP, OSPF 128 routing table IPv4/v6 dual stack DHCP Server/Client/Relay |
QoS | CAR, HQoS, MAC/IP/TCP/UDP/ VLAN/ COS/ DSCP/TOS based QoS, 802.1P/DSCP priority relabeling, SP,WRR, and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping |
Security | Port isolation, Port security, and “IP+MAC+port” binding, MAC sticky DHCP Snooping and option 82, DAI& IP source guard, PPPoE+ IEEE 802.1x, Radius and BDTacacs+ L2/L3/L4 ACL flow identification and filtration Anti-attack from DDoS, TCP’s SYN Flood, UDP Flood, etc Broadcast/multicast/unknown unicast storm-control Md5, SHA-256, RSA-1024, AES256, etc |
Reliability | Static/LACP link aggregation, Interface backup EAPS and ERPS ISSU |
Management | Console, Telnet,SSH v1/2,HTTP, HTTPS, SNMP v1/v2/v3, RMON TFTP, FTP, SFTP NTP ZTP(Zero Touch Provisioning) SPAN, RSPAN |
Accessories | Power cord, rackmount kits, console cable, anti-slipping pad |
Environment | Operating temperature/humidity: -0°C to 50°C, 10% to 90% non condensing Storage temperature/humidity: -20°C to 70°C, 5% to 90% non-condensing |
Certification | CE, FCC,ROHS |
